Polypropylene Fume Hood
PP fume hood provides the highest level of protection and containment against highly corrosive chemical. It has excellent rating against corrosion and chemical staining, making it highly suitable for applications involving acids and harsh chemicals.
Specifications
- Body
- Sash
- Worktop
- Internal Hood
- Electrical socket
- Base cabinet

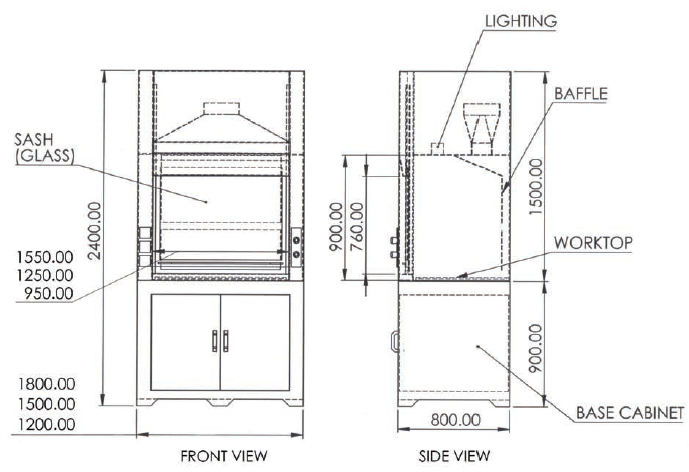

Dimensional
Features
- Sturdy and rigid body fully made of polypropylene
- Excellent resistance to corrosive chemicals and chemical staining
- Sash made of tempered glass to prevent etching
- High chemical and heat resistance epoxy resin worktop
- Customisable components such as service fixtures, water faucets and drip cup
- Customisable base cabinet; can be mounted on bench, base leg or safety cabinet
Customisation

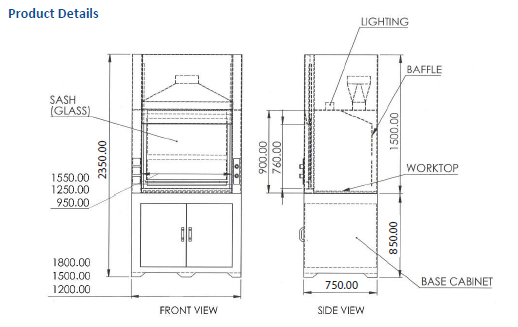

Product Details
| Model | PPFH-4 | PPFH-5 | PPFH-6 |
| External Dimensions (mm) | 1200(L) x 750(W) x 2400(H) | 1500(L) x 750(W) x 2400(H) | 1800(L) x 750(W) x 2400(H) |
| Internal Dimensions (mm) | 950(L) x 650(W) x 1100(H) | 1250(L) x 650(W) x 1100(H) | 1550(L) x 650(W) x 1100(H) |
| Inner Hood | Polypropylene | ||
| Material | 5-10mm(Thk) Polypropylene sheet | ||
| Worktop | 25mm(Thk) Epoxy resin / 30mm(Thk) Phenolic resin c/w marine edge | ||
| Sash | 5mm(Thk) Clear glass / Polycarbonate / Acrylic / Tempered glass | ||
| Full Sash Opening (mm) | 700(H) | ||
| Standard Features | 1 Unit of 10 Watts light – 2 Units of 13 Amp electrical socket – 1 Unit of light switch – 1 Unit of gas and water outlet & remote control – 1 Unit of drip cup – 1 Unit of PP sink |
||
| Base Cabinet (Bottom) | 5-10mm(Thk) Polypropylene sheet | ||
| Power Consumption | 10W (Lighting) | ||
| Volumetric Flow Rate | 4ft: 800 – 1000 cfm 5ft: 1000 – 1200 cfm 6ft: 1200 – 1500 cfm |
||
| Face Velocity | 0.5 m/s at > 300(H) | ||
