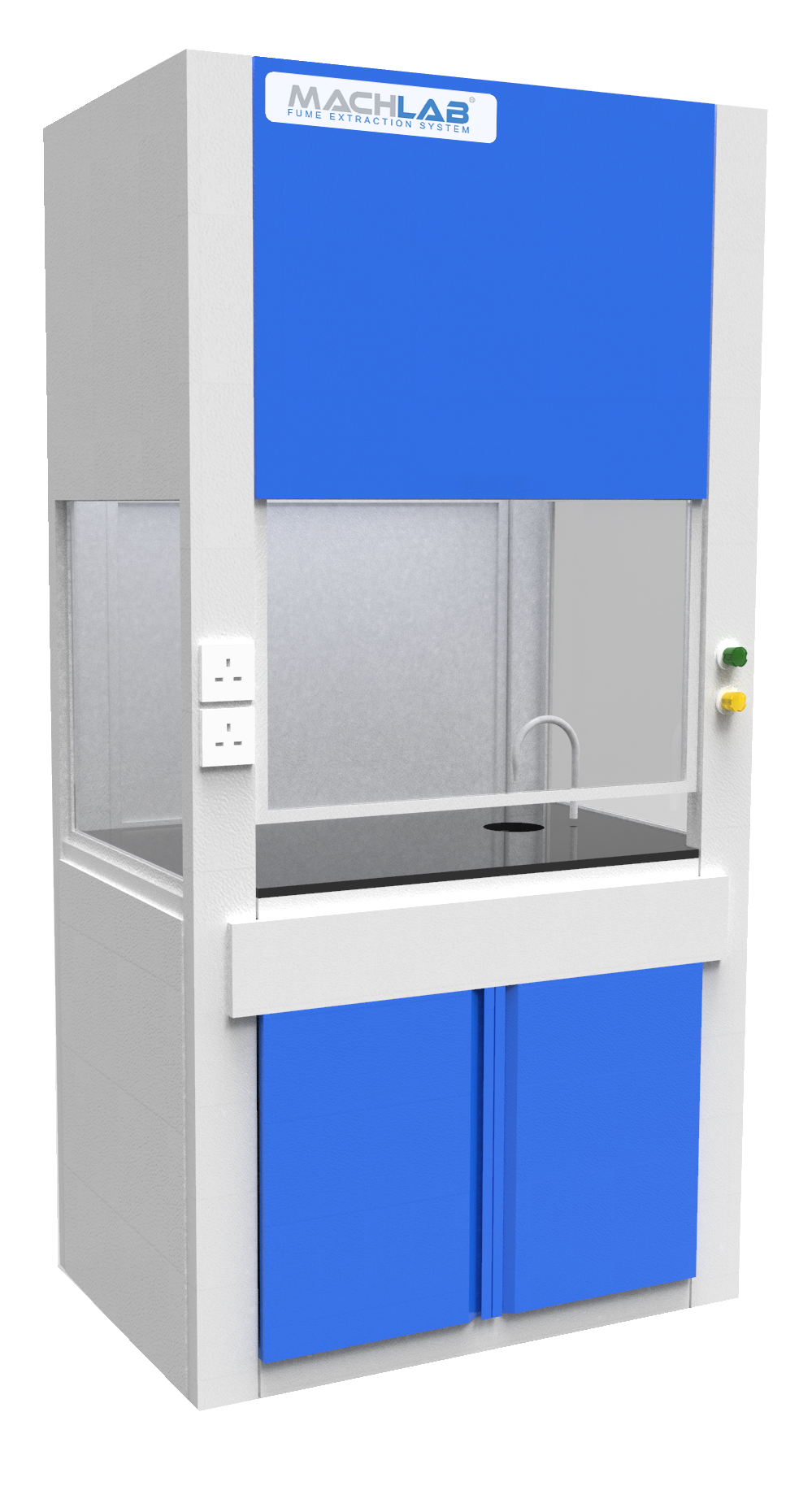

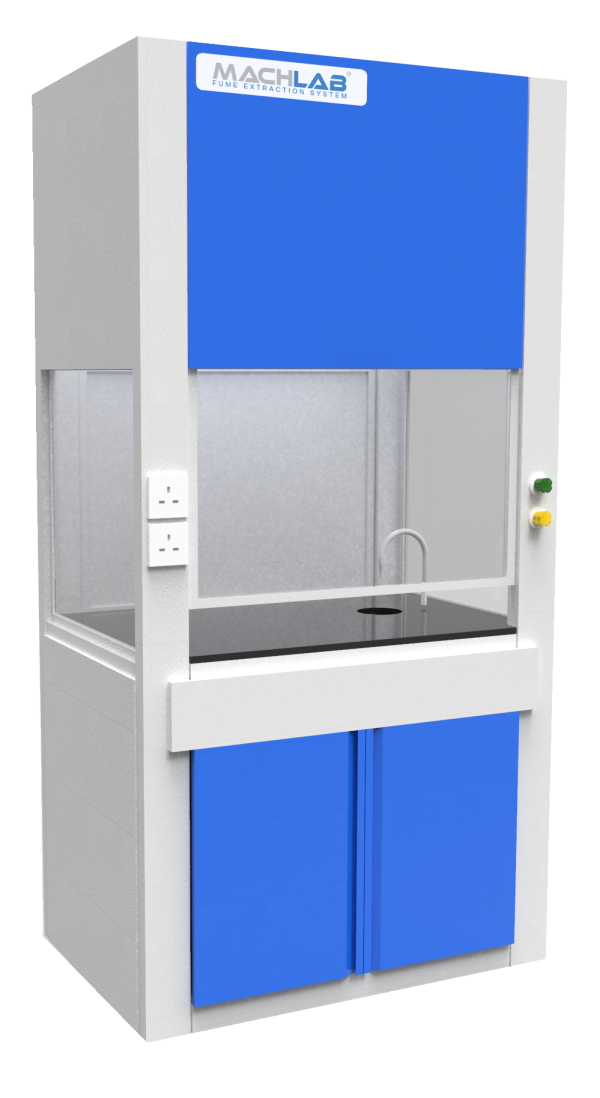

Ductless Fume Hood
Ductless fume hood, sometimes called carbon-filtered enclosure or filtered fume hood, are self-contained, filtered laboratory enclosure that remove hazardous fumes, vapors and particles from the laboratory. Unlike traditional fume hoods, installation costs are very low and no ductwork is required.
Specifications
- Body
- Service fixture
- Water faucet
- Worktop
- Base cabinet
- Sash
- Electrical socket
Dimensional
Features
- Portable model for general purpose ductless fume hood
- Side viewing tempered glass panel for safety
- Low noise below 70dB
- 3 Stage filter module – Panel type dust pre-filter (33402), Activated Carbon Filter (DS2303) & Pleated HEPA filter (99.99% @ 0.3 Micron)(22300).
- Fireproof buffer
- Customisable components such as service fixtures, water faucets and drip cup.
- Customisable base cabinet; can be mounted on bench, base leg or safety cabinet.
Customisation
Product Details
| MILD STEEL | DFH-4-MS | DFH-5-MS |
| External Dimensions (mm) | 1200(L) x 800(W) x 2350(H) | 1500(L) x 800(W) x 2350(H) |
| Internal Dimensions (mm) | 950(L) x 700(W) x 1100(H) | 1250(L) x 700(W) x 1100(H) |
| Material | 1.2mm(Thk) Electro-galvanized steel sheet with epoxy powder coating finish / 5-10mm(Thk) Polypropylene sheet |
|
| Worktop | 25mm(Thk) Epoxy resin / 30mm(Thk) Phenolic resin c/w marine edge | |
| Sash | 5mm(Thk) Clear glass / Polycarbonate / Acrylic / Tempered glass | |
| Full Sash Opening (mm) | 700(H) | |
| Standard Features | – 1 Unit of 10 Watts Light – 2 Units of 13 Amp electrical socket – 1 Unit of light and fan dual switch – 1 Unit of gas and water outlet & remote control – 1 Unit of drip cup |
|
| Base Cabinet | 1.2mm(Thk) Electro-galvanized steel sheet with epoxy powder coating finish / 5-10mm(Thk) Polypropylene sheet |
|
| Power Consumption | 10W (Lighting) | |
| Volumetric Flow Rate | 4ft: 800 – 1000 cfm 5ft: 1000 – 1200 cfm |
|
| Face Velocity | 0.5 m/s at > 300(H) | |
